2 in 1 M5 OPM+VFL Splicing Machine 6S FTTH Fiber Optic Splicer Splicing Machine M5 fusion Machine fusion Splicer

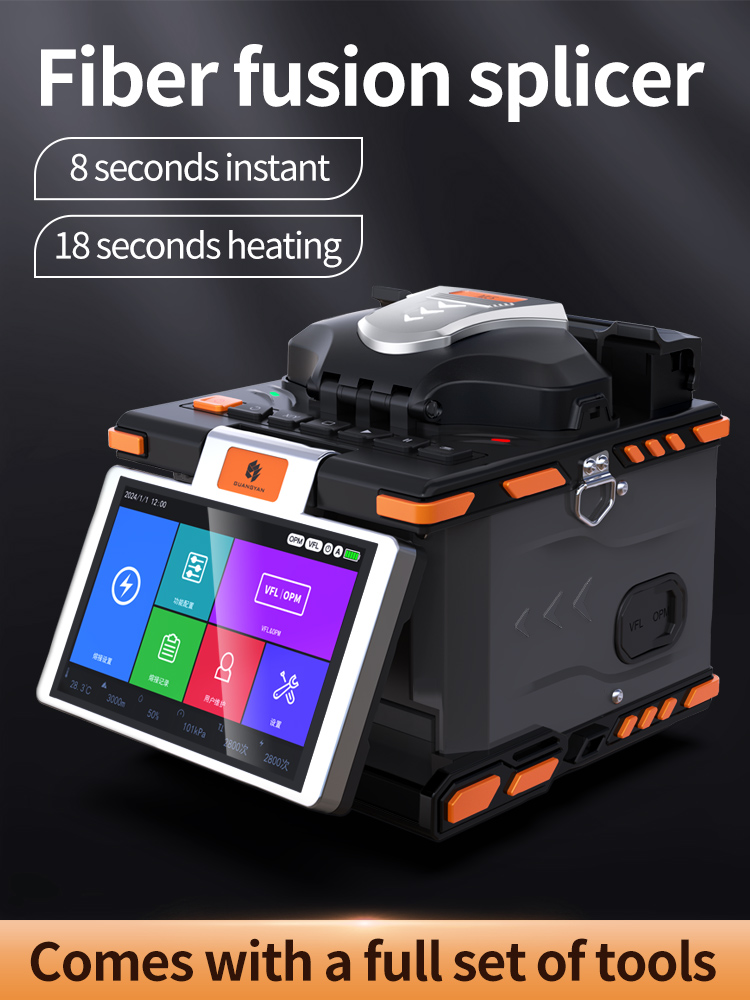

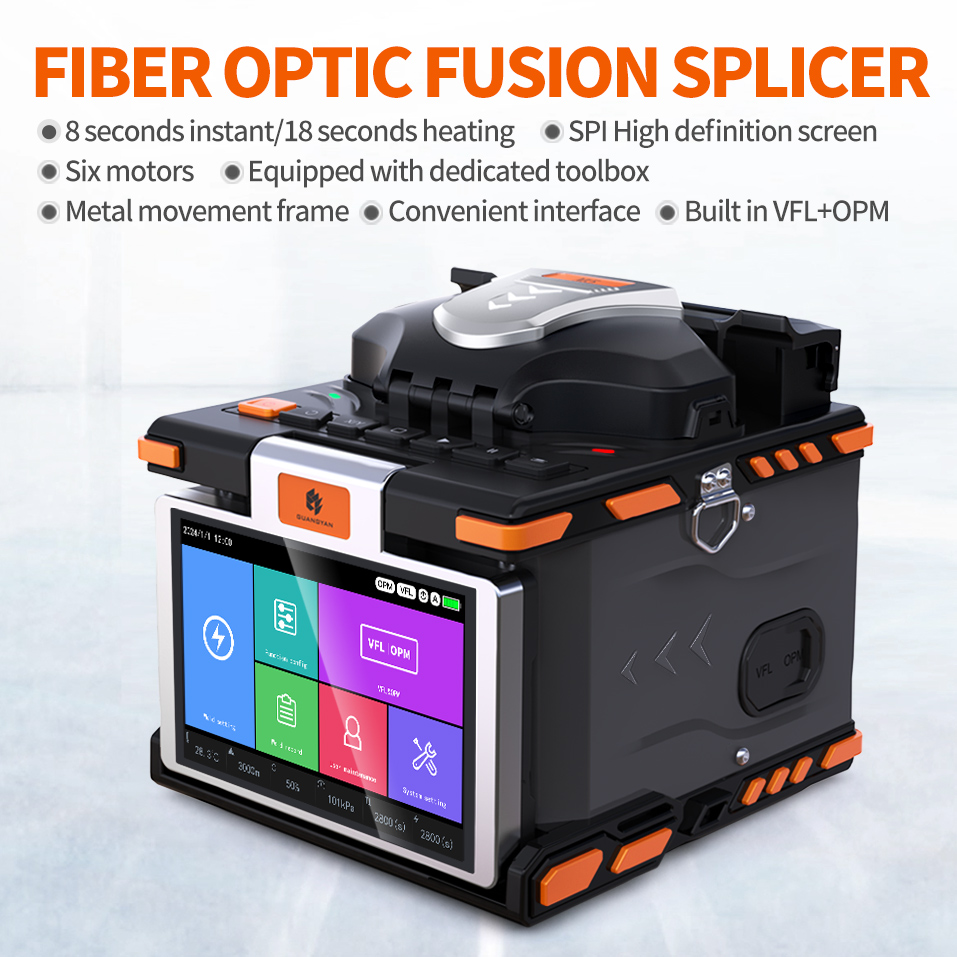

YW-KT-M5 Fiber Fusion Splicer
Product Introduction
|
Alignment mode |
Fiber core and cladding |
|
Focusing mode |
Six motors auto focus |
|
Welding mode |
Automatic/manual |
|
Welding time |
8s(typical SMF value) |
|
Tension test |
1.96-2.25N |
|

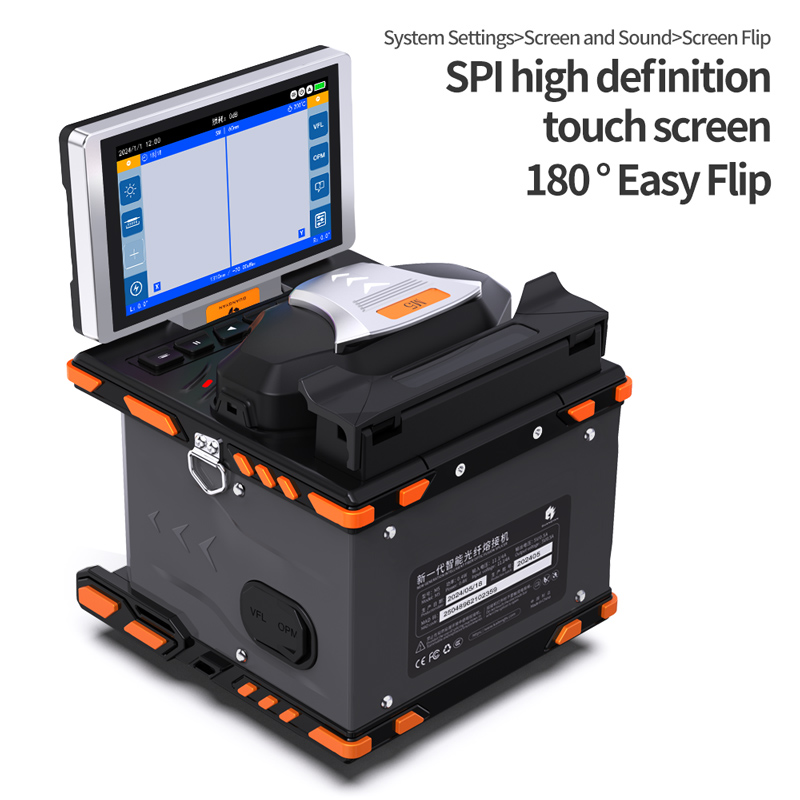

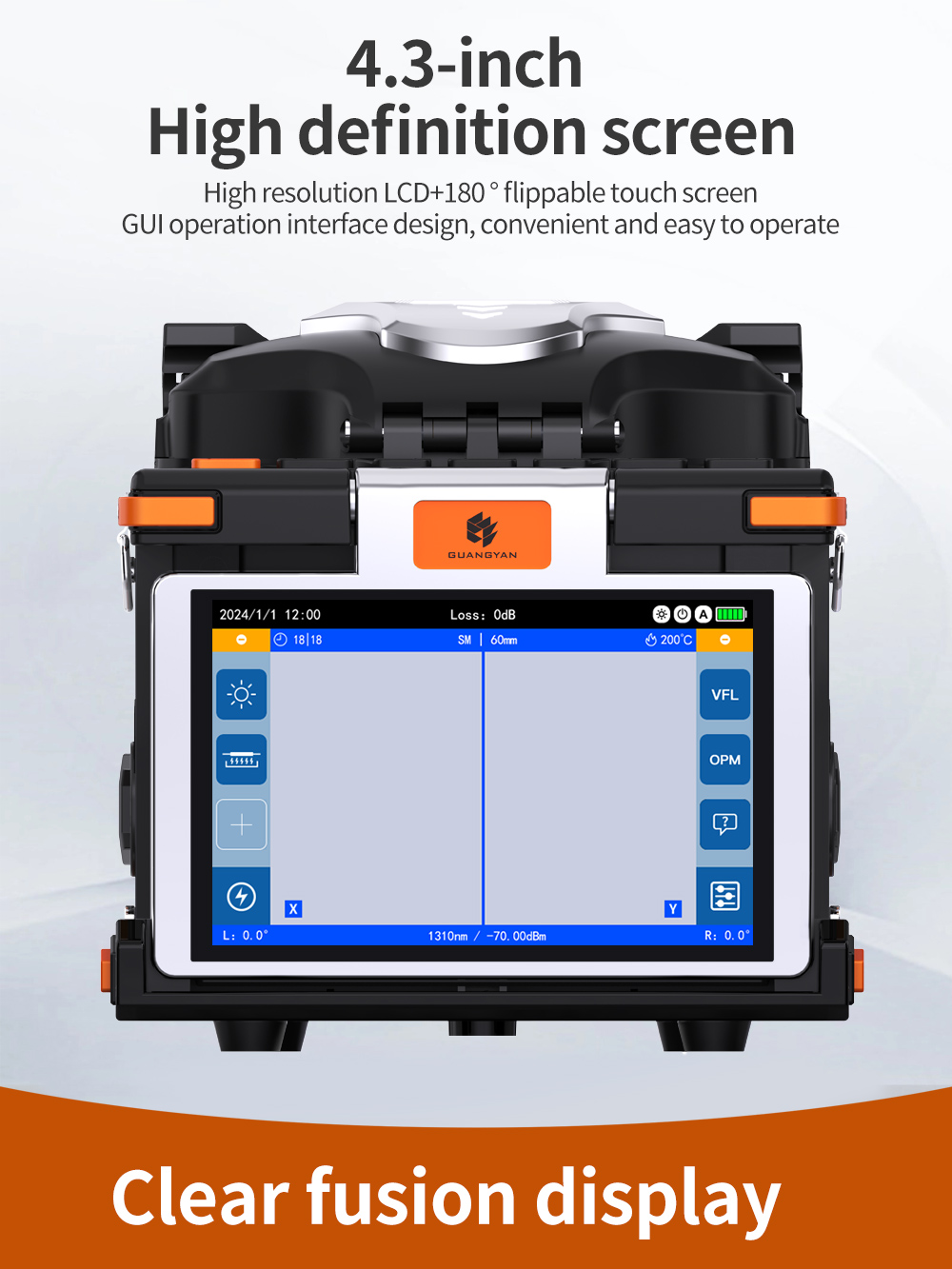

Image display |
Capacitive 4.3"touch LCD screen |
|
magnification |
300(X/Y),150(X/Y synchronization) |
|
Welding record |
10000 groups(1000 pictures) |
|
Typical heating time |
18S |
|

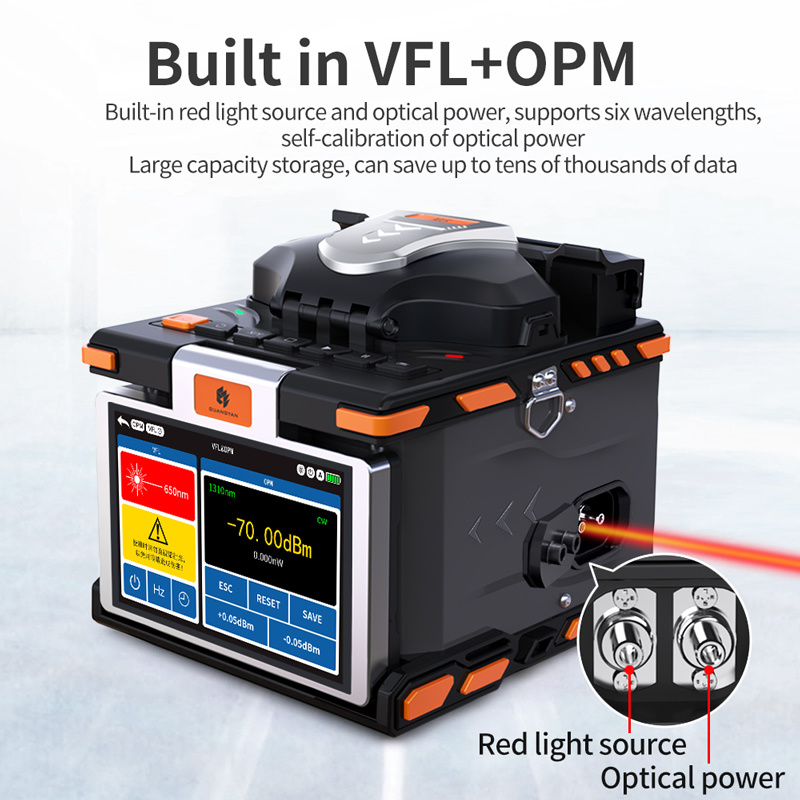

VFL |
≥10MW |
|
Operating interface |
GUl graphical useroperation interface |
|
Electrode life |
3000 times |
|
Lighting mode |
Automatic/manual |
|
Heating time |
0-60S |
|
Charging time |
≤3.5h |
|
Output voltage |
DC11.1V |
|
USB port output |
5V/500mA |
|
Fiber diameter |
Cladding:80-150um,coating layer:0.1-3mm |
